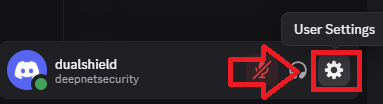

Log in to your Discord Account, then click on the user settings icon (found in the bottom left of the logon screen - see example below) ;

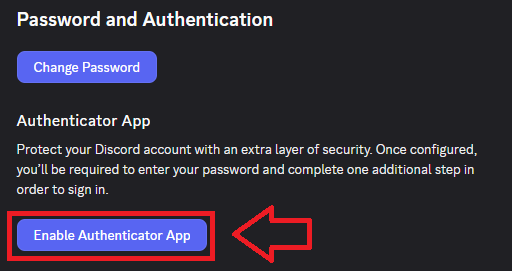

Select "My Account" from the left hand column menu, then scroll down to the section "Security Keys", click on the button ;

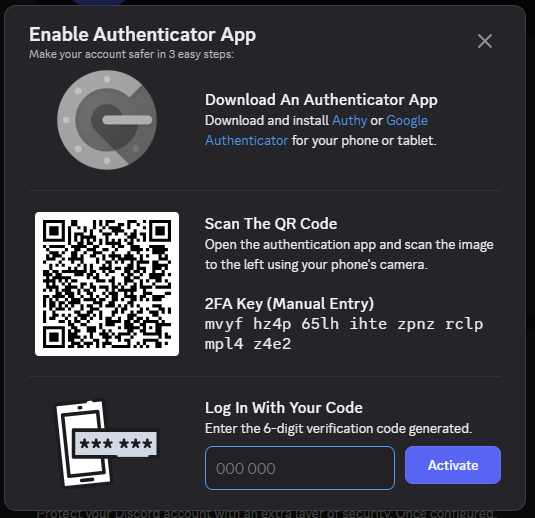

A QR code containing seed data that will be transferred to your programmable token will now be displayed;

You can use the QR code to program our programmable tokens using the instructions found in the following procedure;

  • To program a SafeID/Diamond or SafeID/Pro token with a QR code, launch the SafeID/Diamond programming tool.


    Click the Scan QR Code button

    Before you scan the QR code please ensure that the clock on your computer is displaying the correct date and time.

    You can scan the screen for a QR code, or load from a file.

    If you are scanning the barcode on the screen please ensure that the QR code is not obscured by other windows, and if you have more than one monitor please ensure that both the app and the QR code are displayed on the main display (display 1).

    If you still have difficulty in scanning the QR code double check you only have the one instance of the app running, and that it is the latest version of the app.  In most cases when there are issues with scanning of the QR code the most likely cause is the QR code contains the wrong data and may need to be regenerated.  To test the QR code you could check that the code works correctly with the authenticator app it is intended for (e.g microsoft authenticator), and if this fails then you know that the QR code will need to be regenerated.


    Select Scan Screen.

    If succeeded, the Seed box should be filled with the token's seed data.


    Now, select your smart card reader from the Reader drop-down list, e.g. "HID OMNIKEY 5427 CK"


    Press the Connect button


    Now, switch on a SafeID token and place it on the reader.

    The tool will read out the token's serial number and time, and display them:


    If you want to correct the clock on the token, then leave the "Sync Token Clock" checked, but first ensure the time on your pc is set correctly.

    Press the Burn button


    The token is successfully programmed.

    Switch off the token and switch it on again to generate a new code (the token may only use the new seed after being reset)

Verifying your token

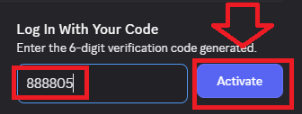

Once you have programmed your token you will need to verify it with Discord by supplying a 6 digit code from your programmable token, then clicking ;

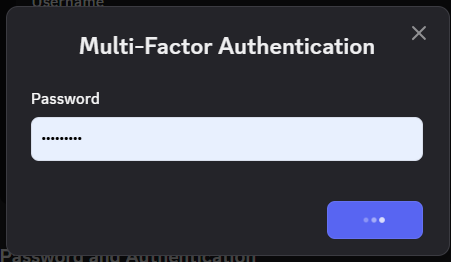

You will be asked to supply your password, enter you password, then click ;

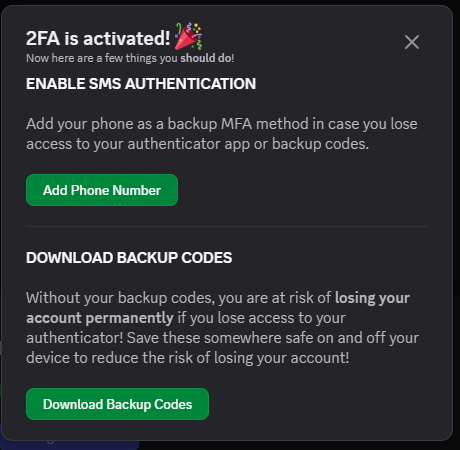

At this point you will be offered the option to download backup codes as a precaution against token loss, and we suggest you obtain the codes and keep them safe;

Your programmable token will now be activated, and can be used when you next log in to your account.
