Log into your Google Account at https://myaccount.google.com

Click "Security", then scroll down to "Signing in to Google"

Click "2-Step Verification"

Click "GET STARTED" button.

You wil be asked to verify yourself

And you will be asked to set up your phone number

Select how you would like to receive the verification code, e.g. "Text message", click "NEXT" button

You will receive the verification code shortly from Google


Enter the verification code that you received, click "NEXT" button

Click the "TURN ON" button to enable 2-step verification

Scroll down to find the section "Authenticator app". Click "SET UP" button

You will get the popup below:

Select "iPhone" even if your phone is Android

You will get a QR code on the popup window

Keep the popup window open, and do NOT click "Next" yet.

Then, follow the instruction below to program your SafeID token with the QR code

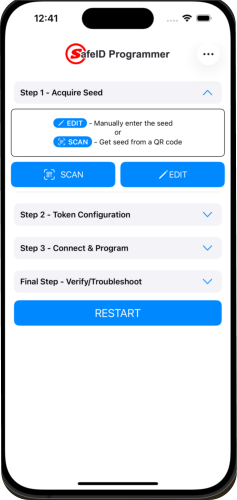

To program a SafeID/Diamond token with a QR code, launch the SafeID/Diamond programming tool.

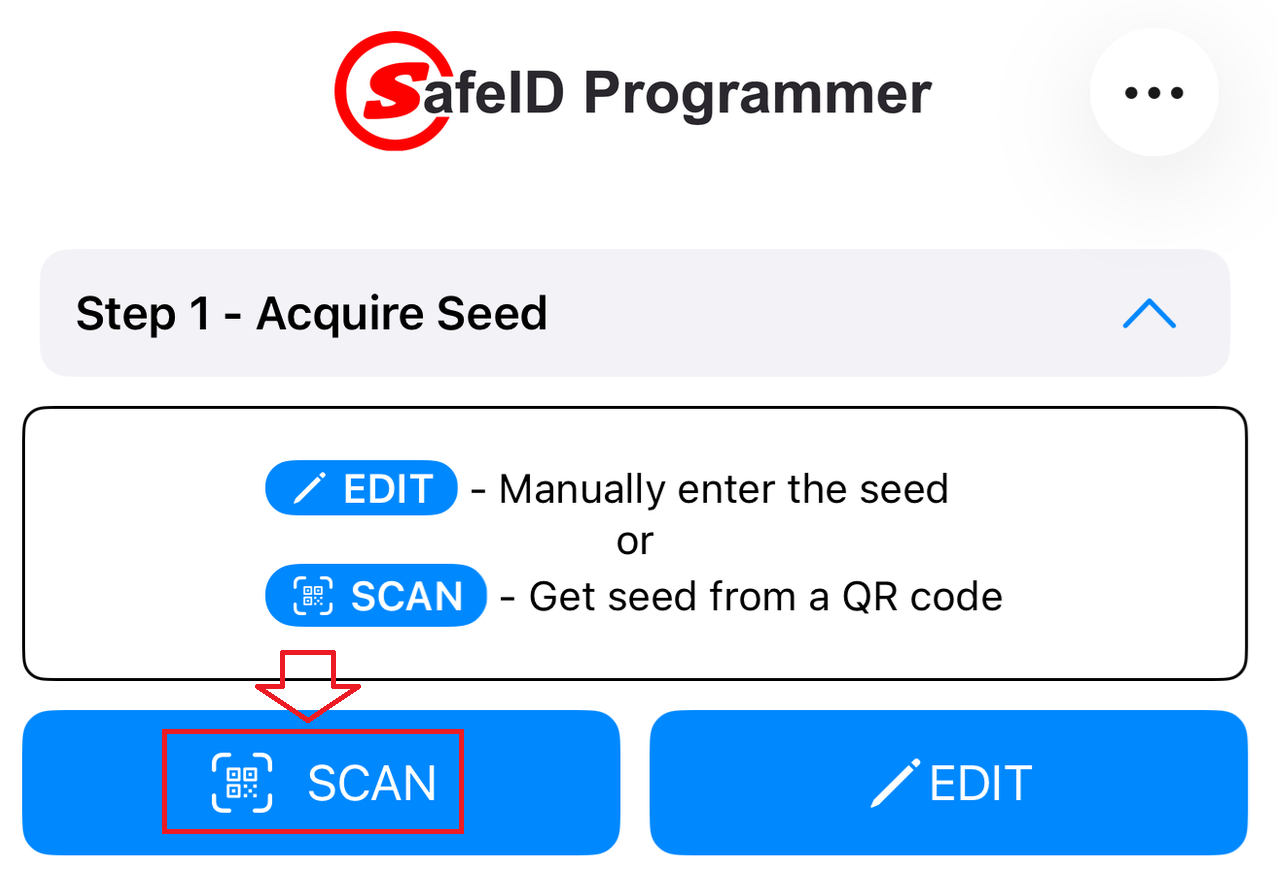

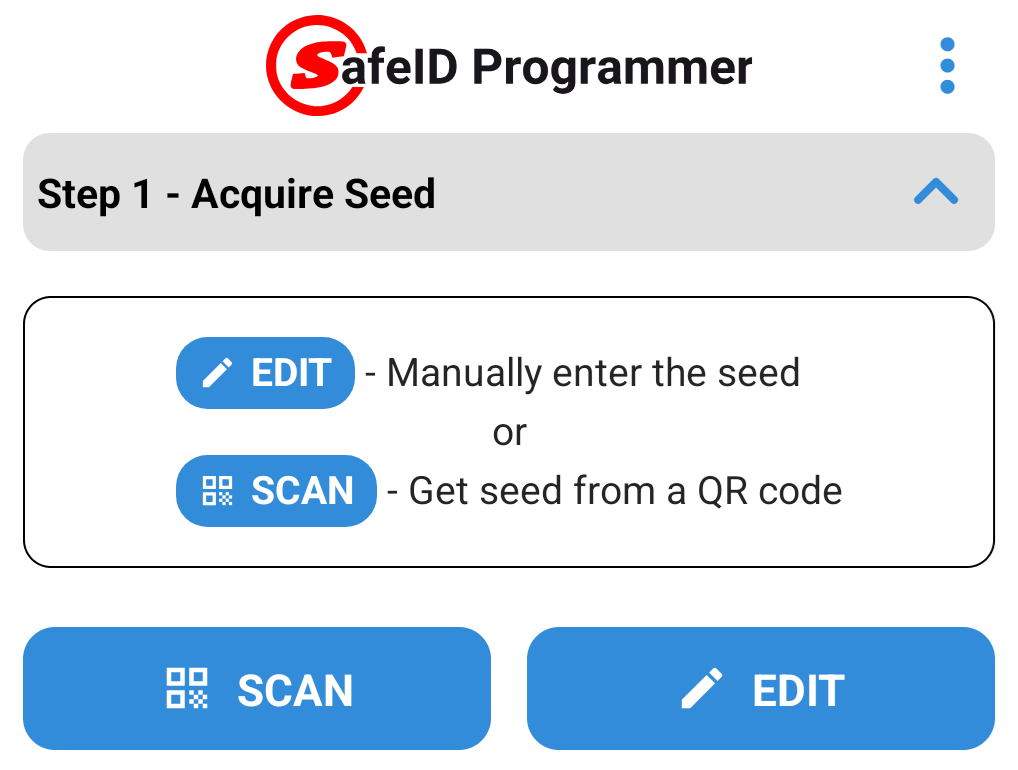

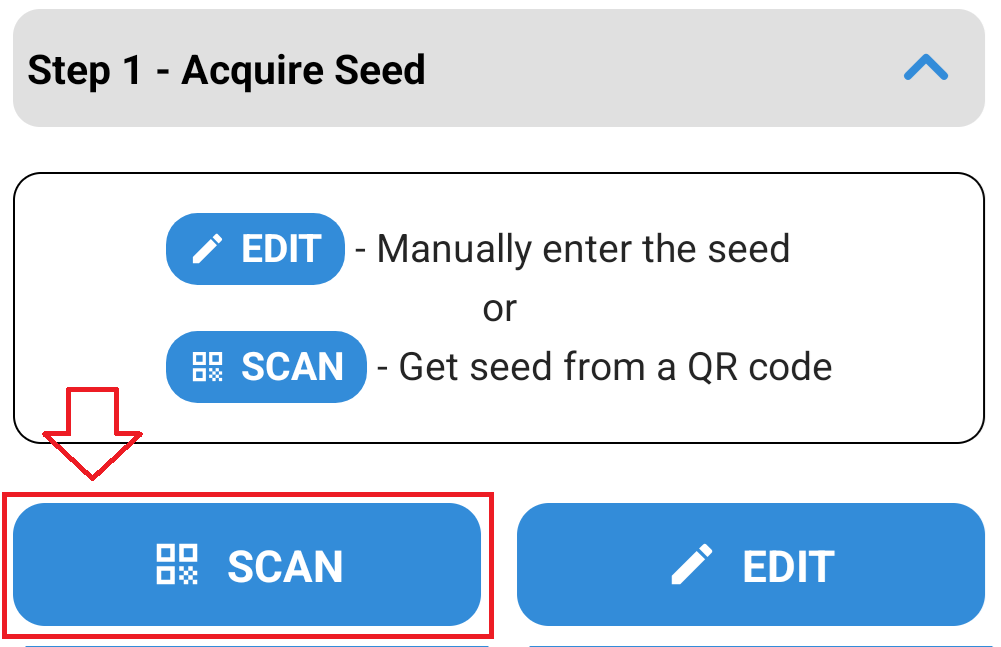

Click the Scan QR Code button

Before you scan the QR code please ensure that the clock on your computer is displaying the correct date and time.

You can scan the screen for a QR code, or load from a file.

If you are scanning the barcode on the screen please ensure that the QR code is not obscured by other windows, and if you have more than one monitor please ensure that both the app and the QR code are displayed on the main display (display 1).

If you still have difficulty in scanning the QR code double check you only have the one instance of the app running, and that it is the latest version of the app.  In most cases when there are issues with scanning of the QR code the most likely cause is the QR code contains the wrong data and may need to be regenerated.  To test the QR code you could check that the code works correctly with the authenticator app it is intended for (e.g microsoft authenticator), and if this fails then you know that the QR code will need to be regenerated.


Select Scan Screen.

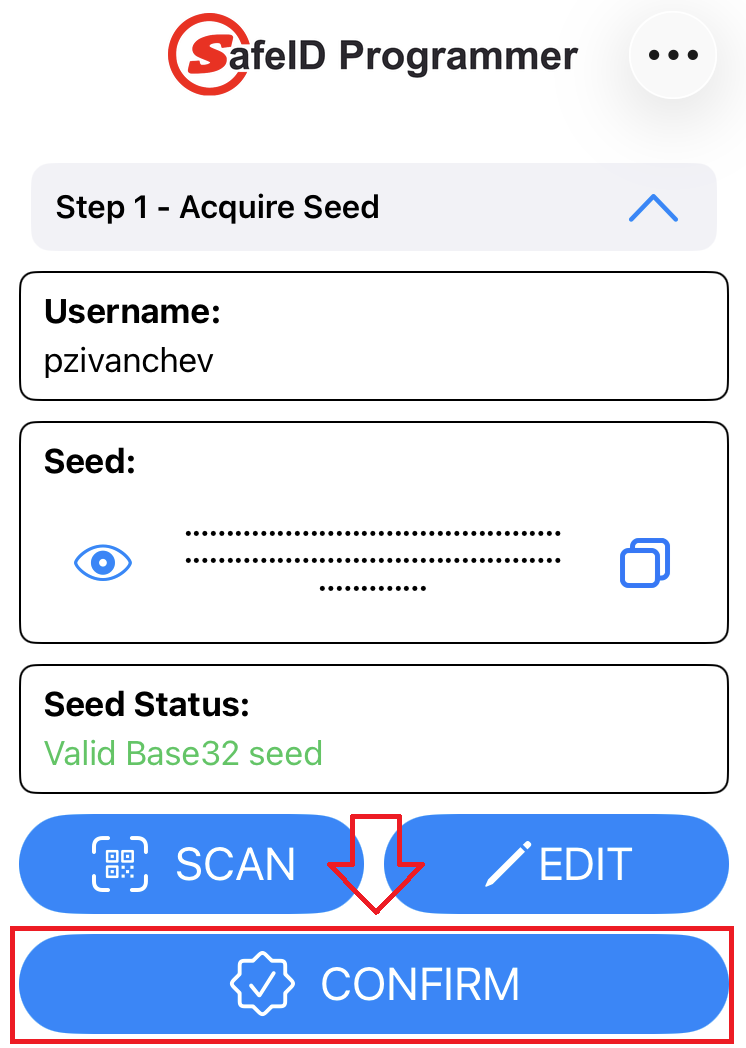

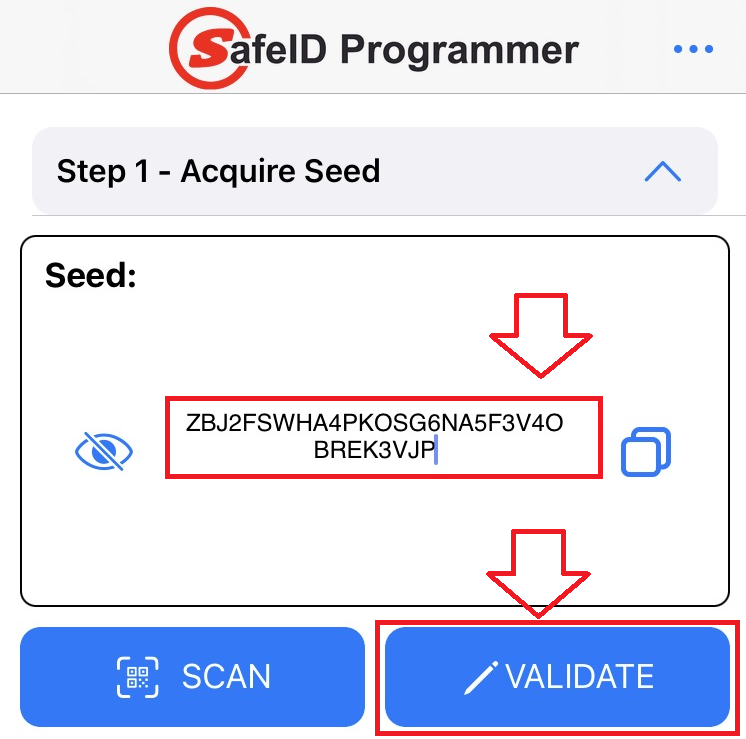

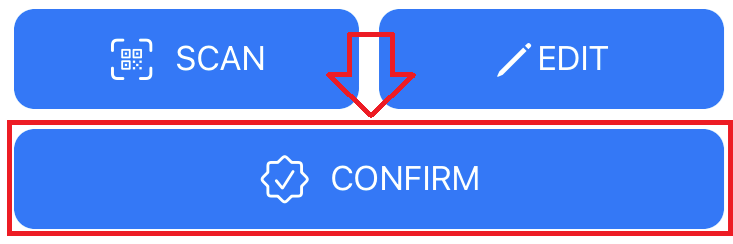

If succeeded, the Seed box should be filled with the token's seed data.


Now, select your smart card reader from the Reader drop-down list, e.g. "HID OMNIKEY 5427 CK"

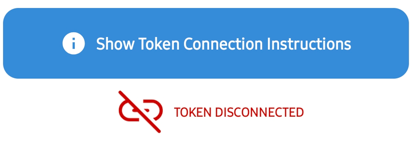

Press the Connect button

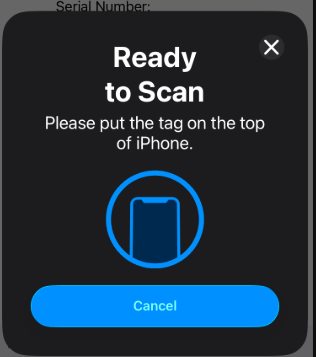

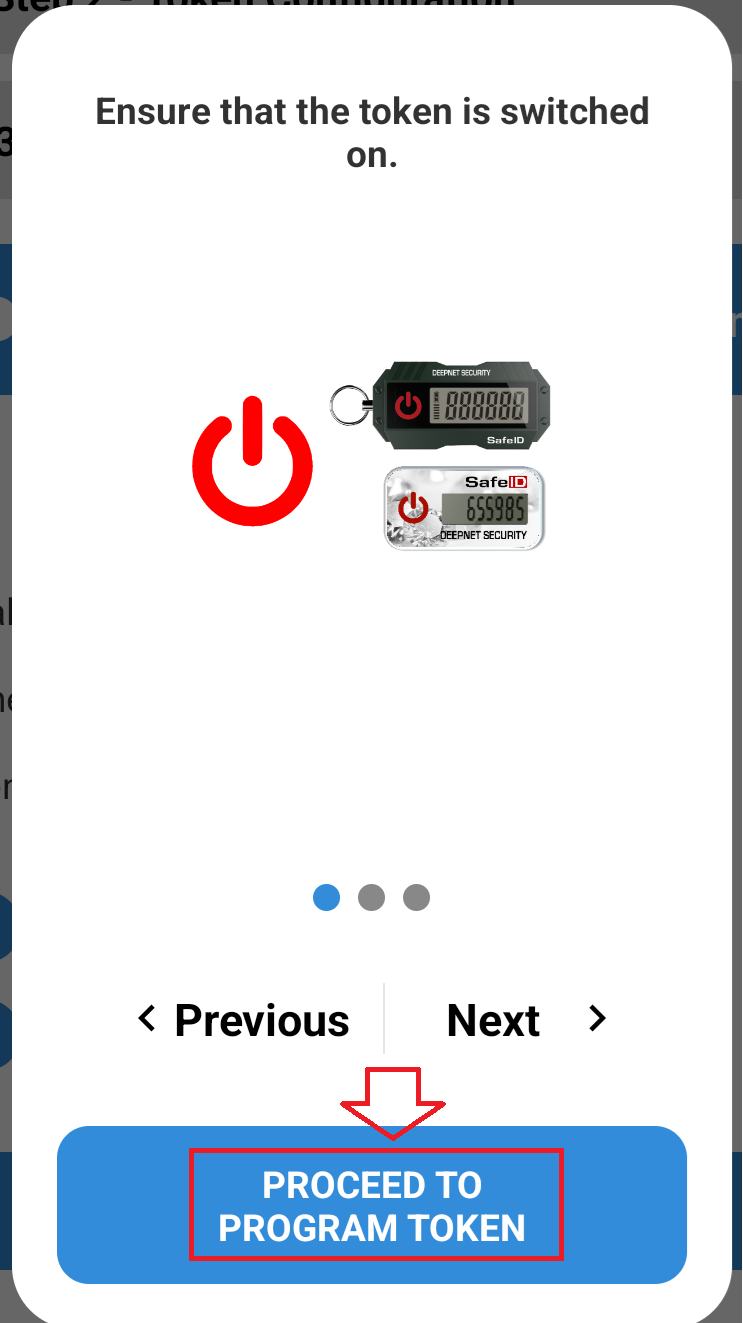

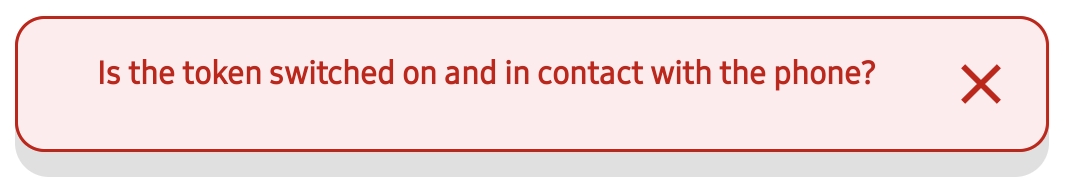

Now, switch on a SafeID token and place it on the reader.

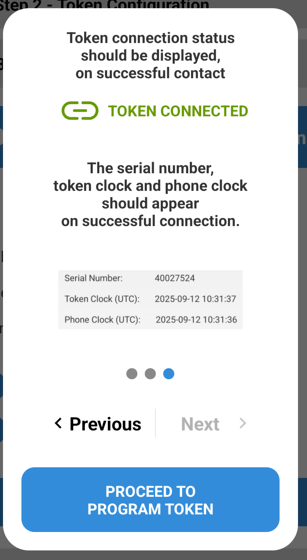

The tool will read out the token's serial number and time, and display them:


If you want to correct the clock on the token, then leave the "Sync Token Clock" checked, but first ensure the time on your pc is set correctly.

Press the Burn button

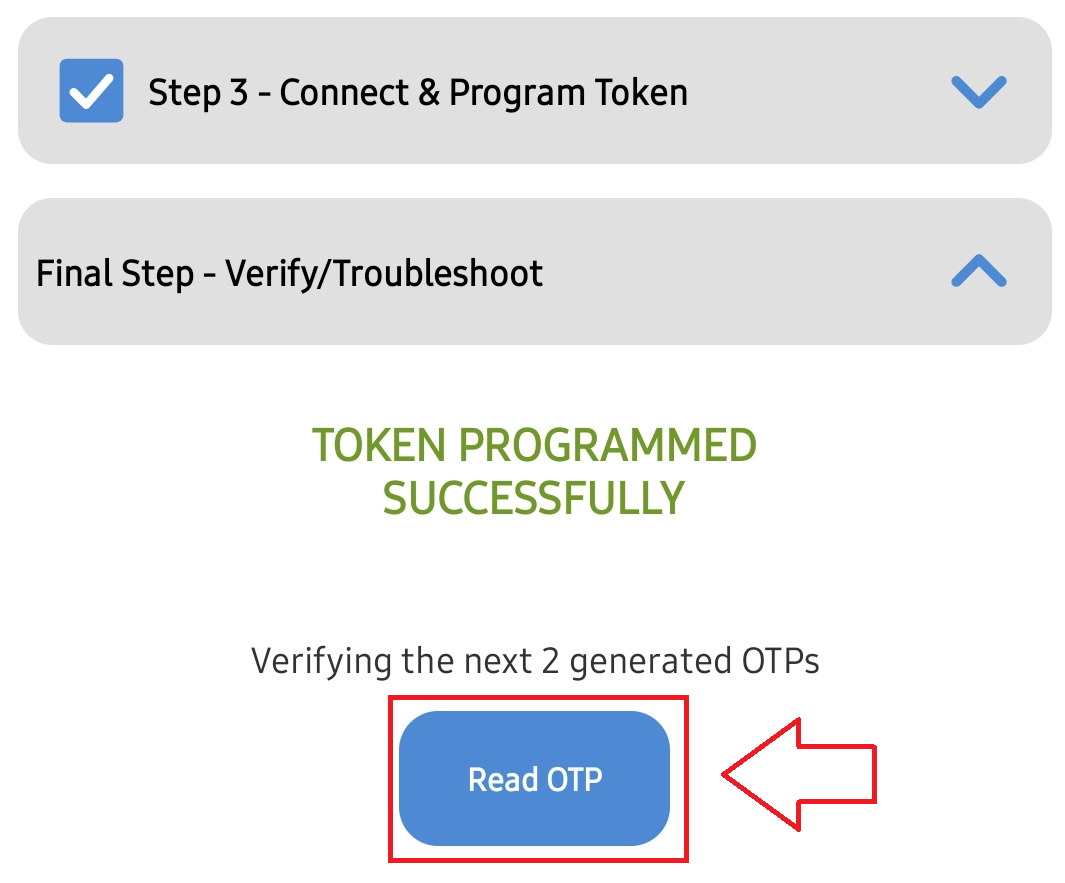

The token is successfully programmed.

Switch off the token and switch it on again to generate a new code

After you have successfully programmed the token with the QR code, you can return to the popup window.

Click "NEXT

You will be prompted to enter a passcode

Use the SafeID/Diamond token that you just programmed to generate a passcode, then enter the passcode in the above window

Click "VERIFY"

Click "DONE" to finish.
