Register DualShield RADIUS Server

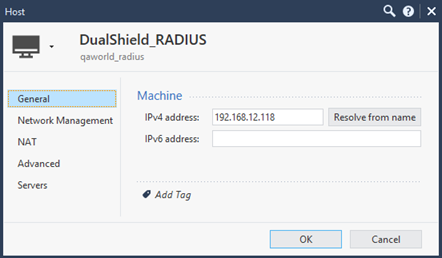

1. Login to CheckPoint SmartConsole, add a new host, select “Objects | New Host”

Enter the Name and IPv4 address of the DualShield RADIUS server.

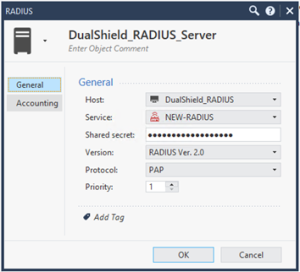

2. Create RADIUS server, select “New | More | Server | More | RADIUS”.

  • Name -  A unique identifier given to the RADIUS Server object.
  • Host - Select the Host Node defined within the previous step.  In this case, it is “DualShield_RADIUS”.
  • Service - There are two possible selections: RADIUS and NEW-RADIUS.  The RADIUS Service describes support for RADIUS running under port 1645 while NEW-RADIUS describes support for RADIUS running under port 1812.  If you selected the default RADIUS Port value during the Deepnet RADIUS server configuration then select NEW-RADIUS as your choice.
  • Shared Secret - Enter the shared secret when you defined the RADIUS Client in DualShield.
  • Version - Select the RADIUS Ver. 2.0 Compatible choice from the selection list.
  • Priority - Select the default value of 1.  The Priority value is used to indicate which server gets priority when multiple RADIUS servers are defined.
