Create a Service Provider

  1. Login to DualShield Management Console
  2. Select “SSO | Service Providers”

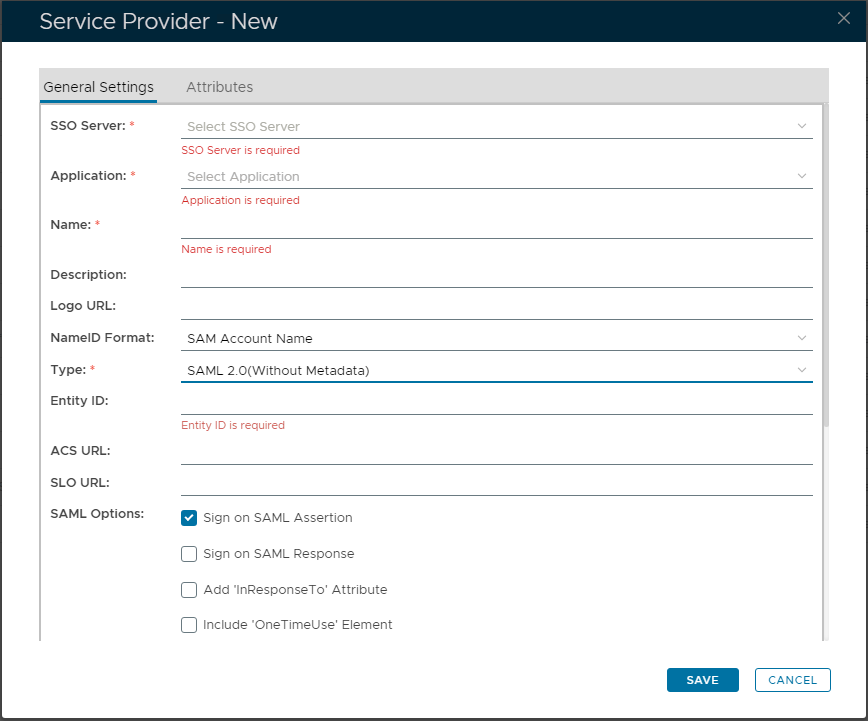

  3. Click the “Create”



  4. In "Type", select "SAML 2.0"

  5. Select "SSO Server" and "Application"

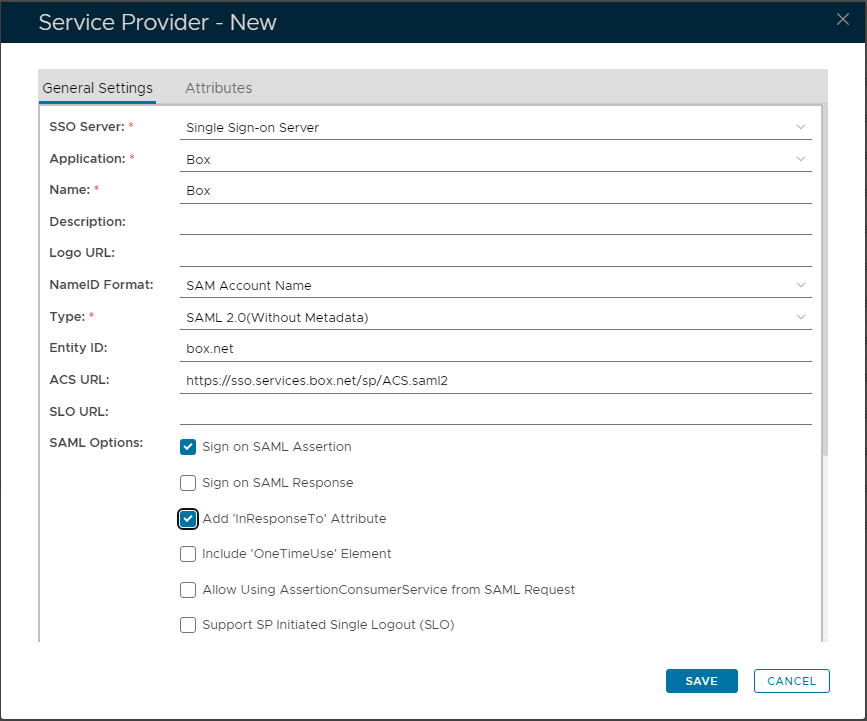

  6. Enter "Name" and "Description"
  7. In "Entity ID" enter "box.net"
  8. In "ACS Url" enter "https://sso.services.box.net/sp/ACS.saml2"
  9. In "SAML options", select "Sign on SAML assertion" on

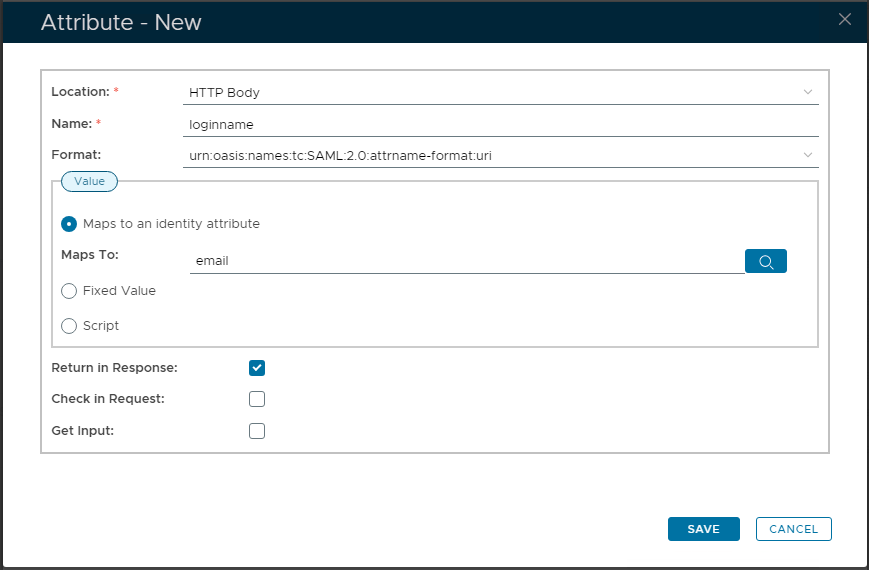

  10. In "Attributes", click the "Edit" button
  11. Click the "Create" button on the toolbar
  12. In "Location", select "HTTP Body"
  13. In "Name", enter "loginname"

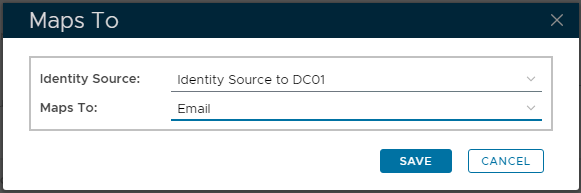

  14. In "Maps to an identity attribute", click the search icon

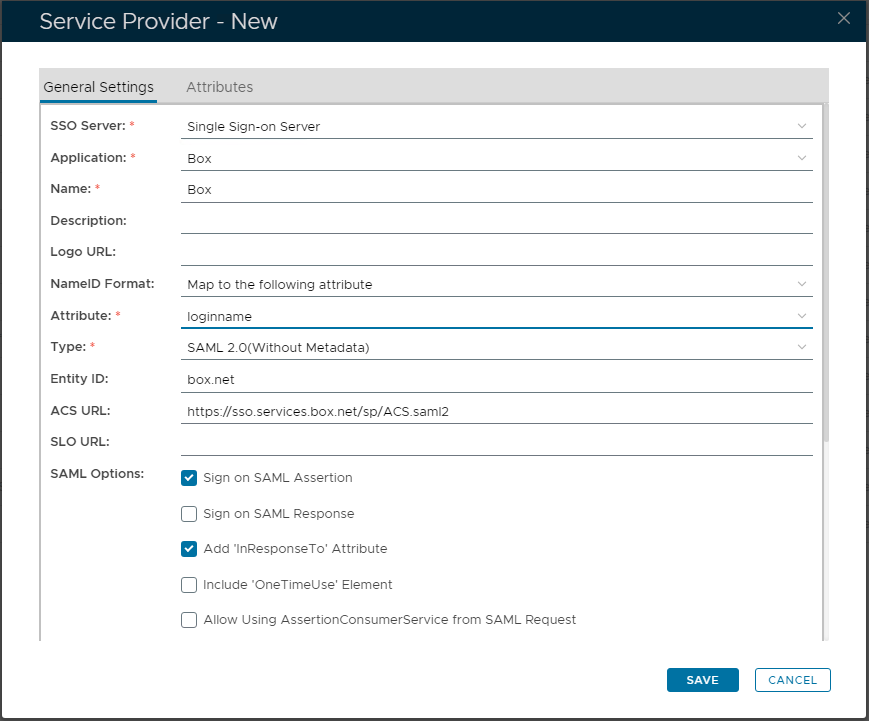

  15. Save the attribute
  16. In "NameID Format", select "Map to the following attribute"
  17. In "Attribute" select the newly created attribute, i.e."email"
  18. Click "Save"
