In the main menu select Radius>Radius Clients
Click on
on the top right

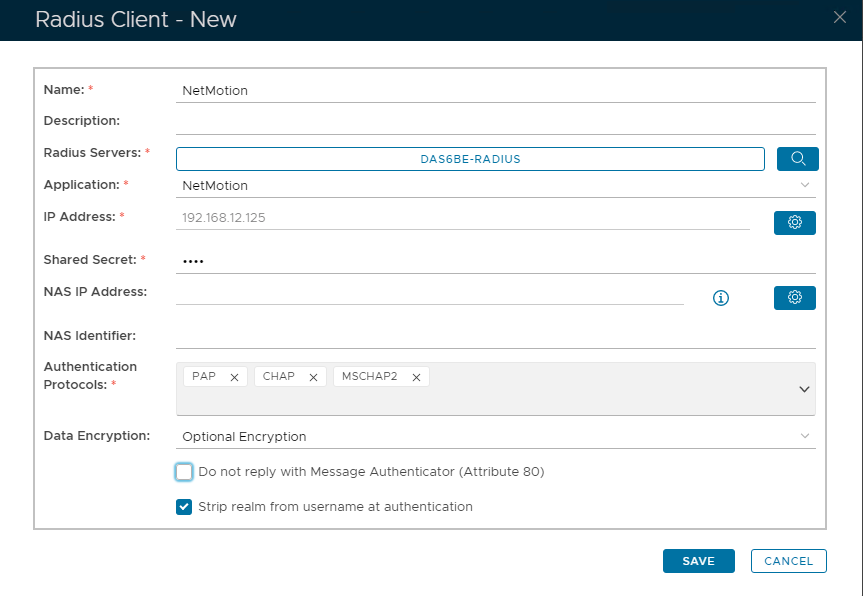

Specify the following Values:
| Option | Value |
|---|---|
| Name | Specify a user-friendly name |
| Description | (Optional) |
| Radius Servers | Select the Radius Server(s) you have bound the application to. (See earlier step) * |
| Application | Specify the name of the Authentication Application |
| IP Address | Specify the IP address of your NetMotion appliance. * |
| Shared Secret | Create a shared secret password |
| Authentication Protocols | PAP; CHAP & MSCHAP2 |
*Use the buttons on the right to enter the value.

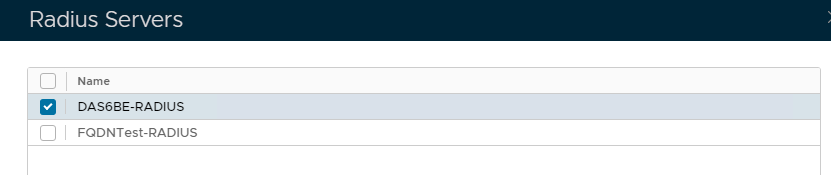

To specify Radius Servers click on
and then select from
Click Save

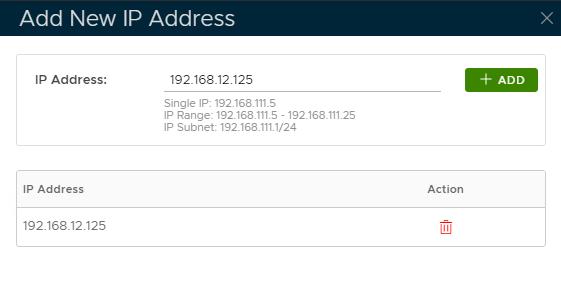

To Specify IP Address click on
Then type the IP address here
and clicking the Add button
Click Save
