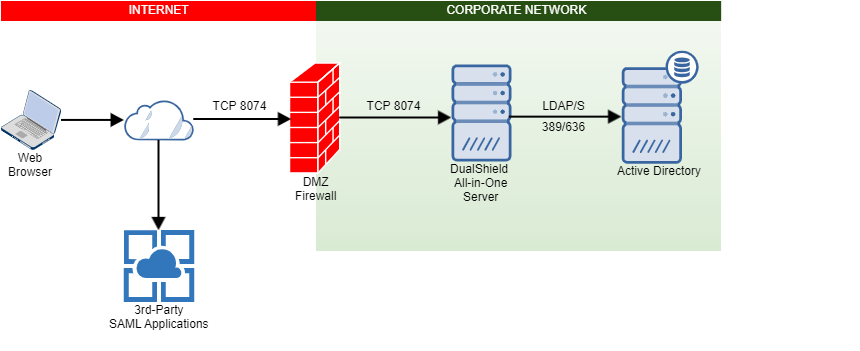

Deployment 1: Compact
In this compact deployment, the DualShield All-in-One Server that includes both the SSO Server and Authentication Server resides in the corporate network.

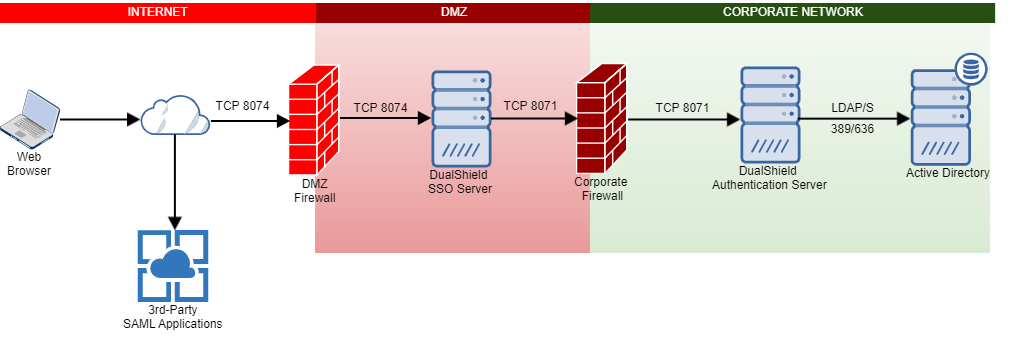

Deployment 2: Extended
In this extended deployment, the DualShield platform is split into two servers, the front-end SSO Server that reside in DMZ, and the backend Authentication Server that resides in the corporate network.
Ports & Protocols
Port | Protocol | Function | Comment |
|---|---|---|---|
| 8074 | TCP | DualShield SSO Server working port | Secure SSL |
| 8071 | TCP | Communication between DualShield SSO Server and DualShield Authentication Server | Secure SSL |
| 389 | LDAP | Communication between DualShield Authentication Server and AD Server | |
| 636 | LDAPS | Communication between DualShield Authentication Server and AD Server | Secure SSL |
