In this wiki, we use the following terminologies

  • Server Machine- This refers to the server machine where the DualShield IIS Agent is installed. Typically, this is an Exchange server running on a Windows Server Core machine.
  • Remote Machine - This refers to a Windows machine where you want to remotely access the DualShield IIS Agent's management panel installed on the Server Machine.

To access the DualShield IIS Agent installed on the Server Machine from the Remote Machine, follow the steps below:

On the Server Machine

0 - Make sure that IIS Remote Management service has been installed & enabled

1 - Download the DualShield IIS Agent v6.8.0.0809 from the link below

https://download.deepnetsecurity.com/update/IIS%20Agent/

2 - Install the DualShield IIS Agent v6.8.0.0809

By default, the DualShield IIS Agent will be installed in the folder: C:\Program Files\Deepnet Security\IIS

3 - Download the files below:

  • DasIIS7UIServer.dll
  • DasIIS7UIClient.dll
  • DasIIS7UICommon.dll

from: https://download.deepnetsecurity.com/update/IIS%20Agent/

4 - Copy the above 3 files to the DualShield IIS Agent folder, i.e. C:\Program Files\Deepnet Security\IIS

5 - Execute the following command:

C:\Program Files\Deepnet Security\IIS>DasIIS7SetupAssistant.exe -x64 -i "C:\Program Files\Deepnet Security\IIS"

On the Remote Machine

0 - Make sure that the IIS Manager has been installed

1 - Navigate to the folder: C:\Windows\Microsoft.NET\assembly\GAC_MSIL

2 - Create a subfolder called "DasIIS7UICommon"

3 - Navigate to the folder: C:\Windows\Microsoft.NET\assembly\GAC_MSIL\DasIIS7UICommon

4 - Create a subfolder called "v4.0_6.8.0.809__99c7e8653921d910"


5 - Download the files below:

  • DasIIS7UICommon.dll

from: https://download.deepnetsecurity.com/update/IIS%20Agent/

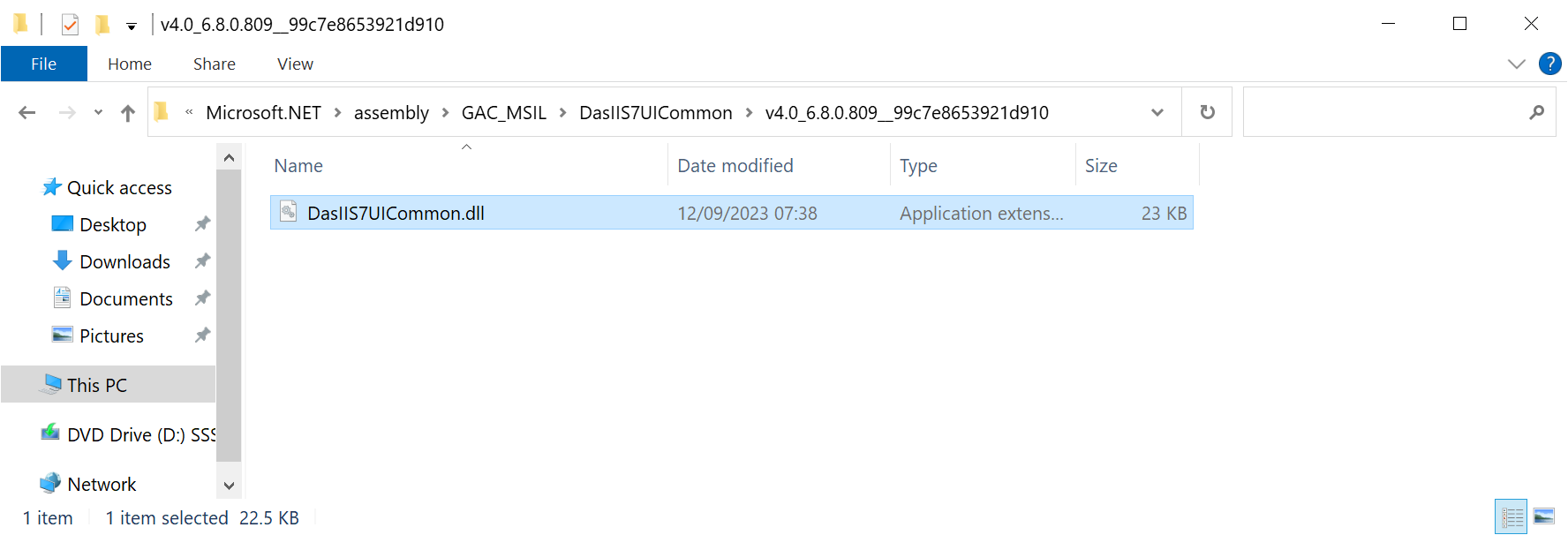

6 - Copy the file "DasIIS7UICommon.dll" to the folder "C:\Windows\Microsoft.NET\assembly\GAC_MSIL\DasIIS7UICommon\v4.0_6.8.0.809__99c7e8653921d910"

7 - Launch the IIS Manager

8 - Select "File | Connect to a Server"

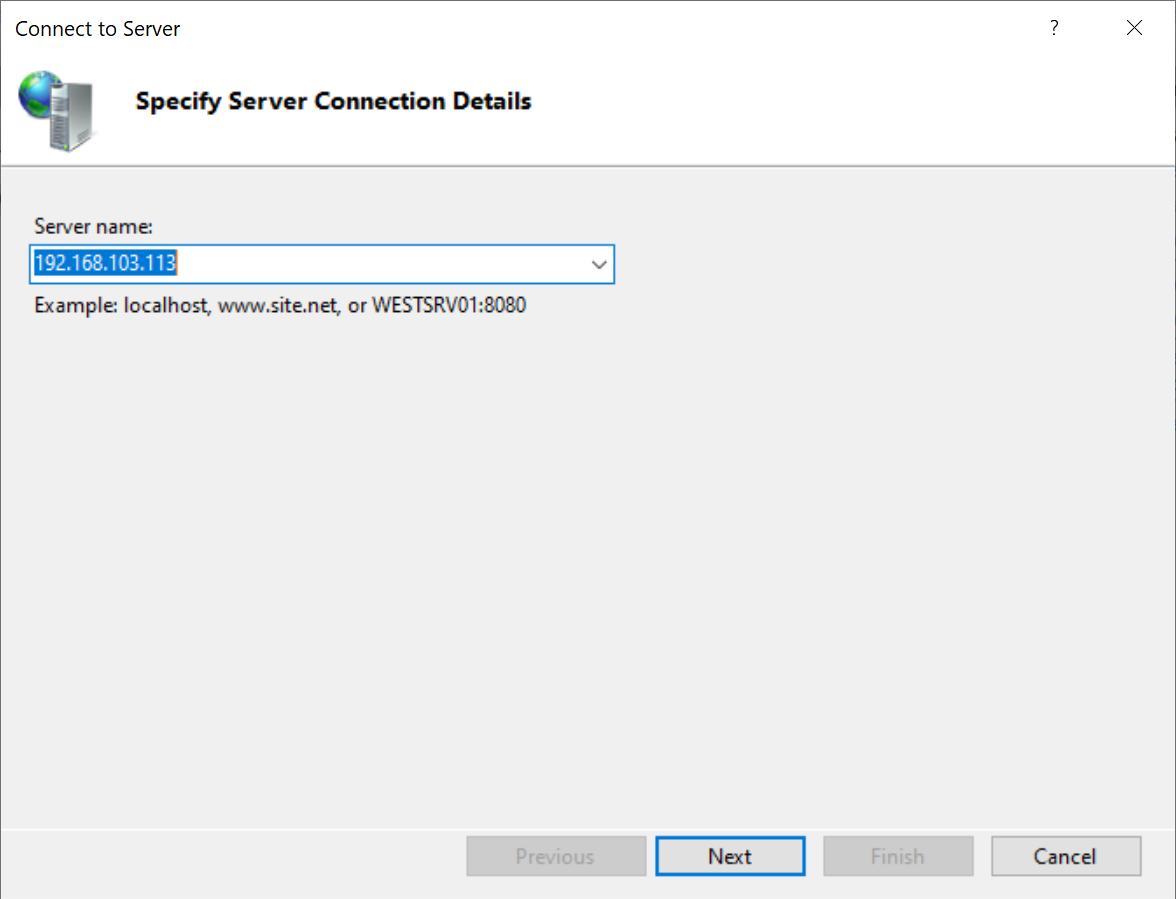

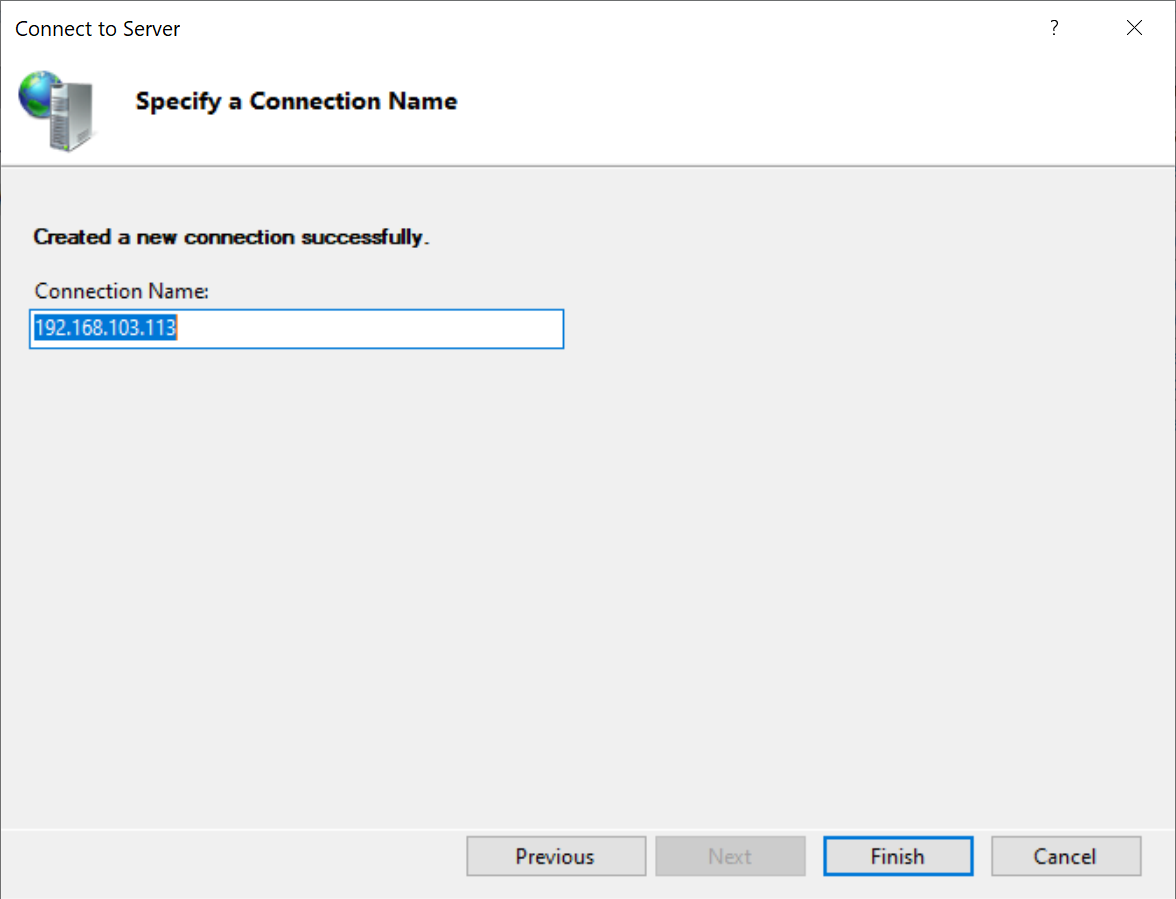

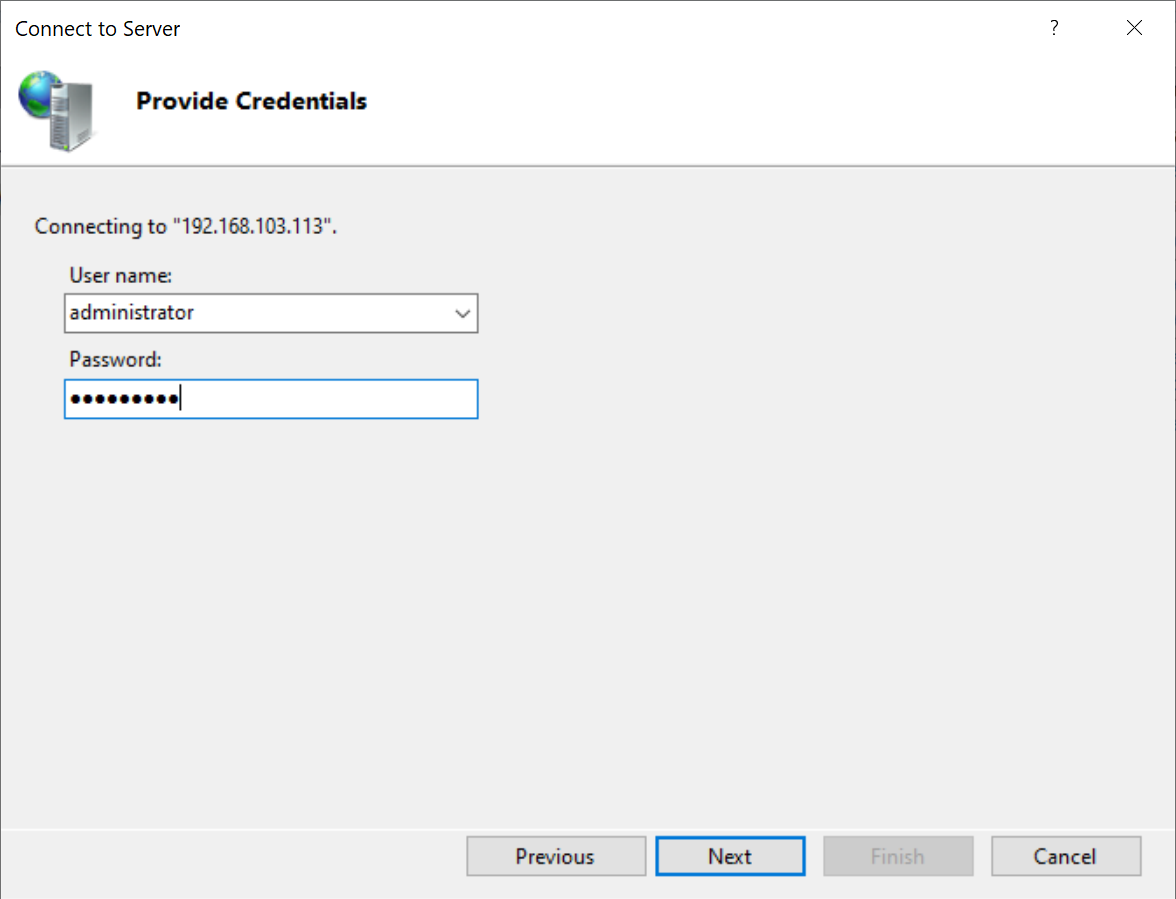

9 - Enter the address of the Server Machine, e.g. 192.168.103.113

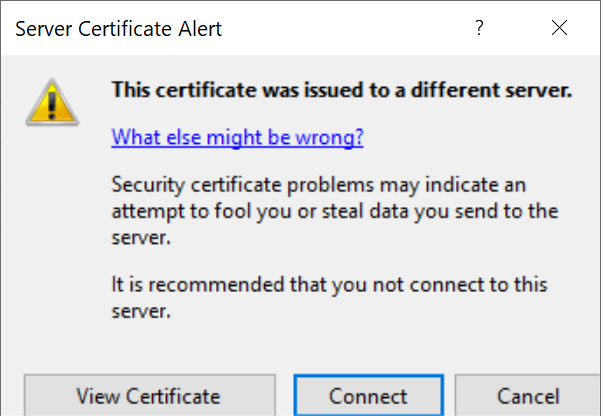

You might get a Server Certificate Alert

Click "Connect" to continue

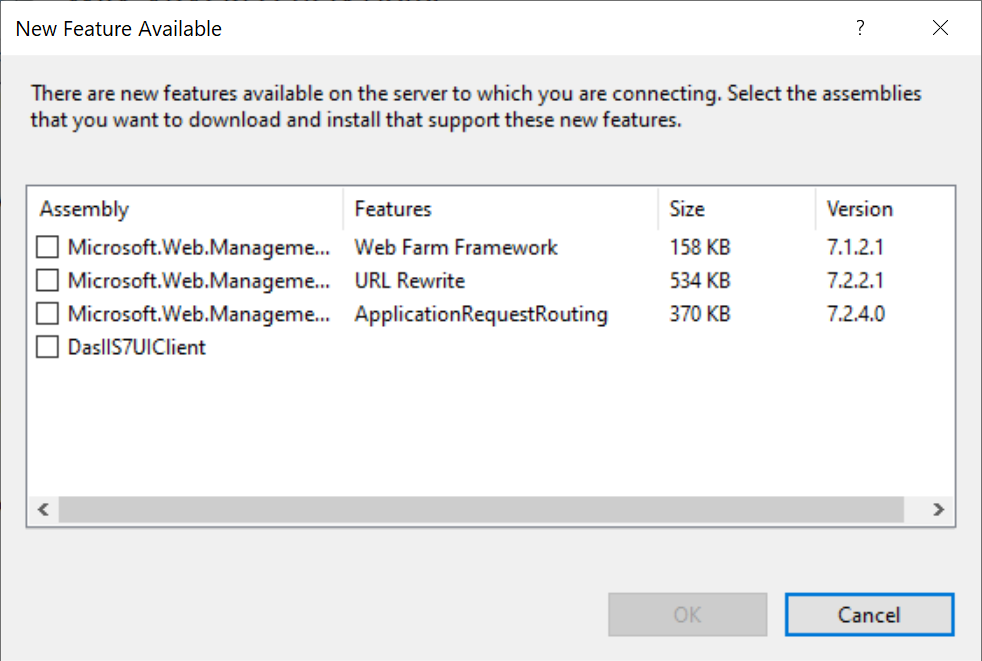

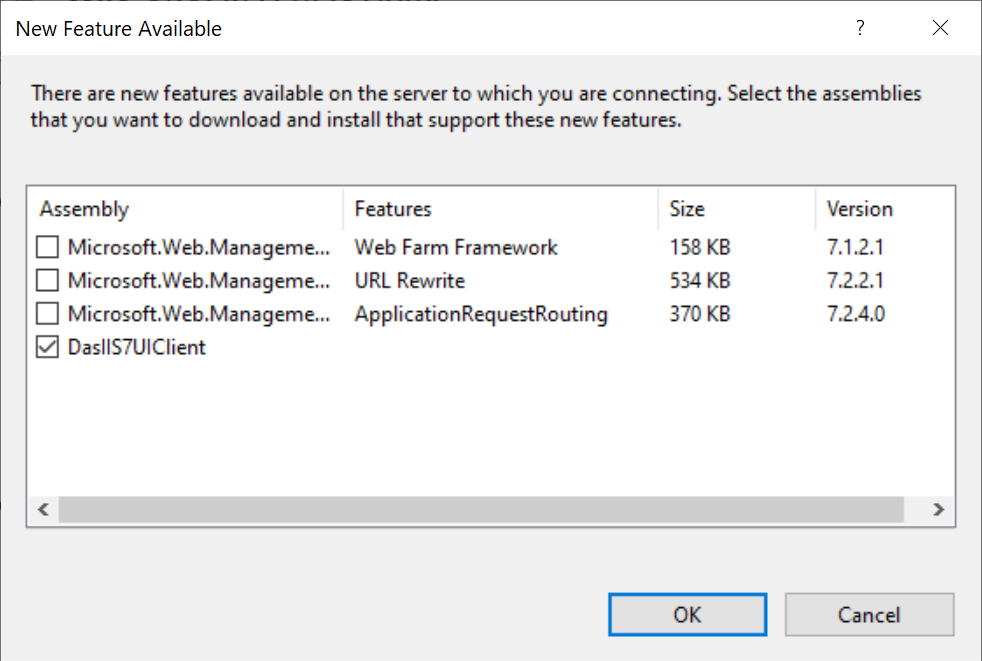

Now, you'll be prompted to install the  UI component of the DualShield IIS Agent

Select "DasIIS7UIClient"

Click "OK" to continue

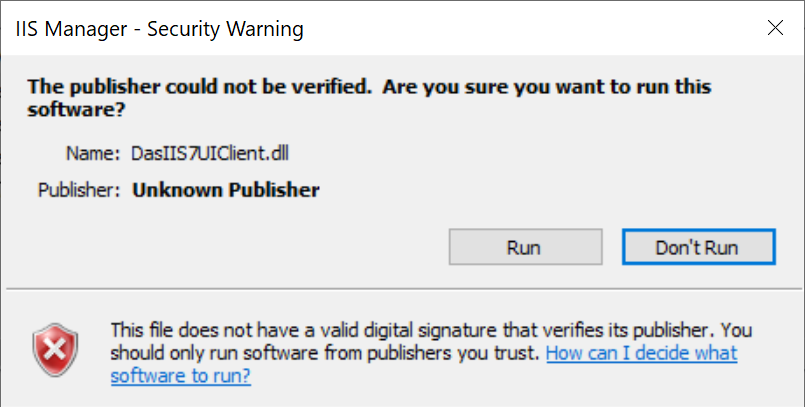

You might also get the following security warning:

Click "Run"

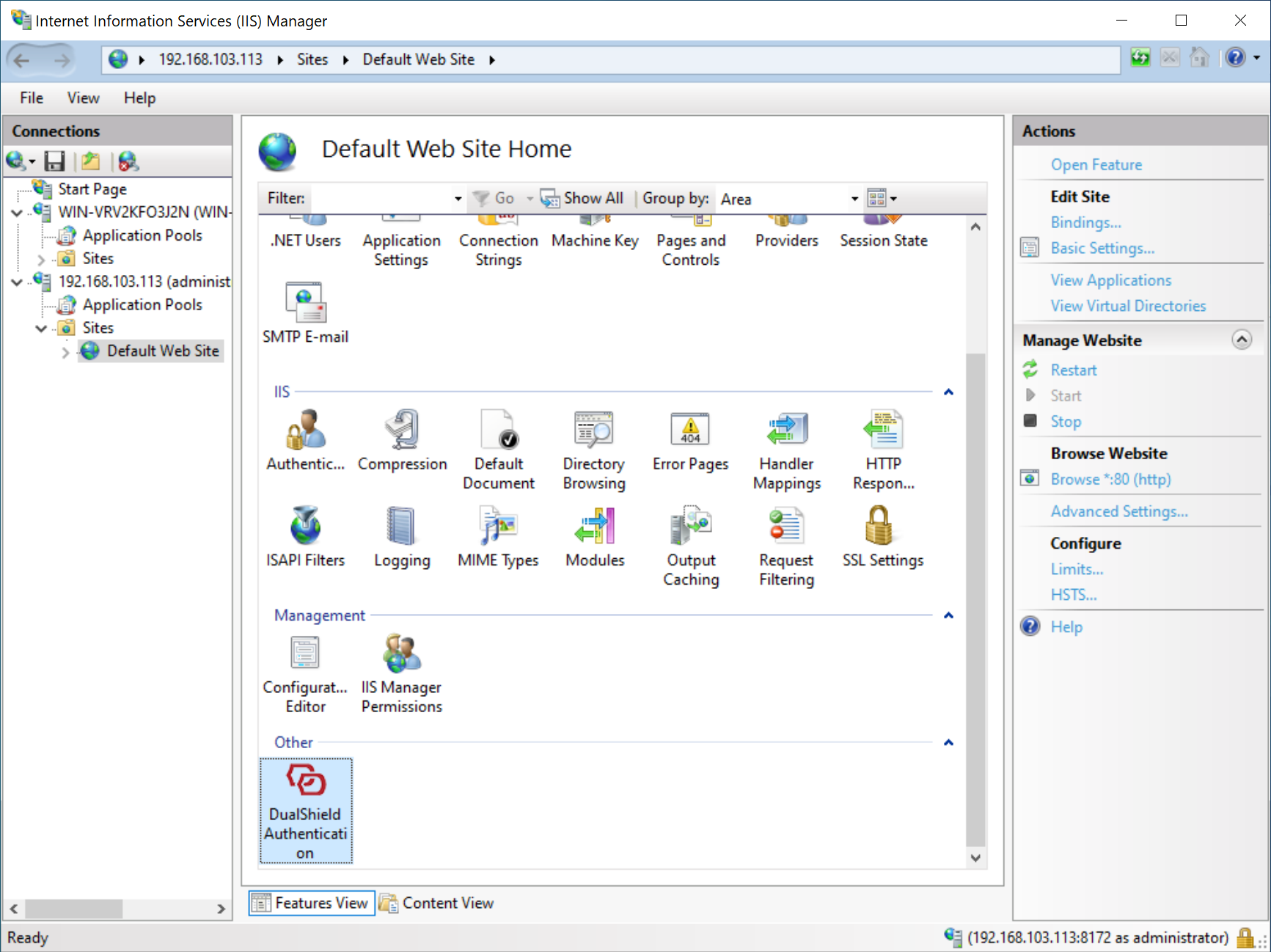

Now, in the IIS Manager, you can access the DualShield IIS Agent on the Server Machine, i.e. 192.168.103.113:
