Install DualShield MDM Server

To install the DualShield MDM Server, launch its installer "DualShieldMdmServer.WindowsInstaller_nn.nn.nn" (in which "nn.nn.nn" is its version number), and go through the following steps:

Welcome

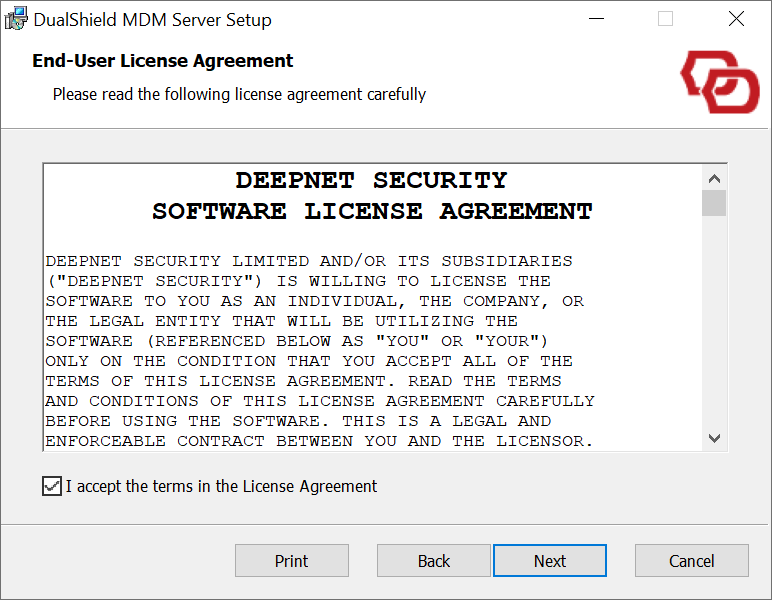

License Agreement

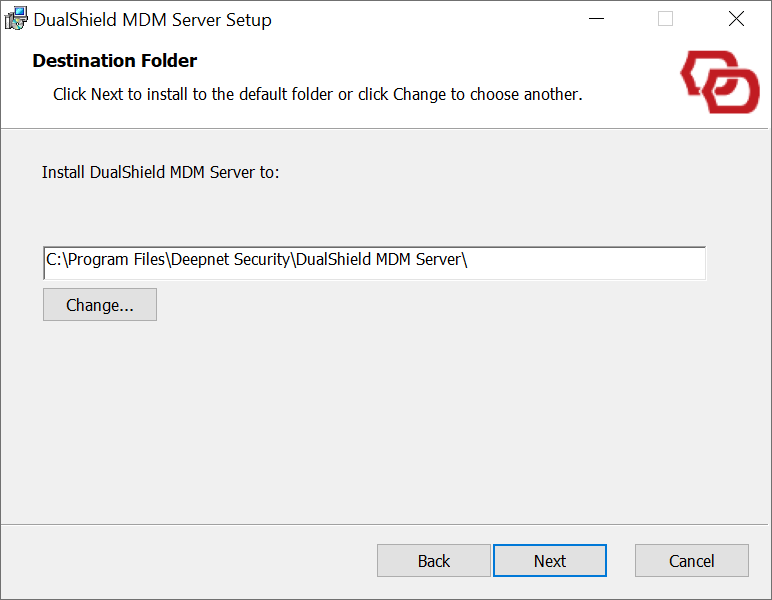

Installation Path

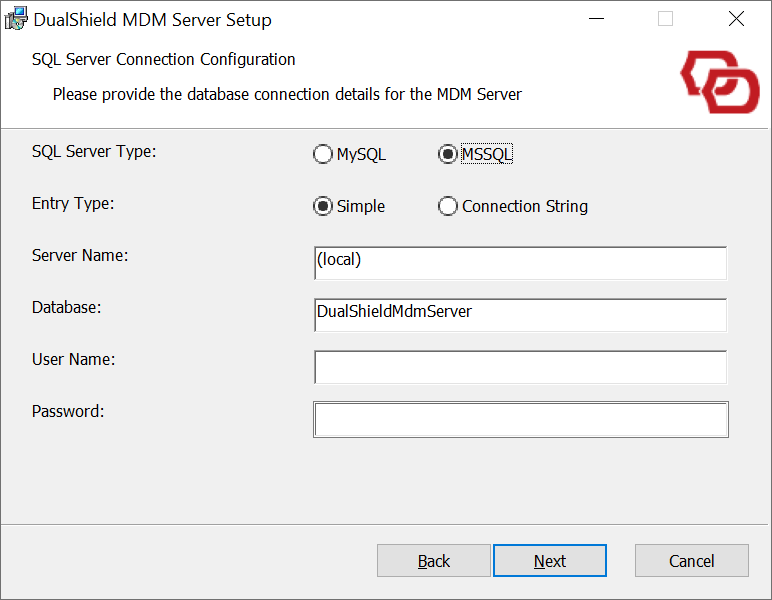

SQL Server Connection

The DualShield DMD Server uses an SQL server as its database storage. It does not include an SQL server in its installer, therefore it requires an external SQL server.

Typically, you would use the same SQL server used by your DualShield Authentication Server. In the example below, we're using the MySQL server at the IP address of 192.168.103.11 that is being used by a DualShield Authentication Server

Select or enter the following options carefully

OptionRemarks
SQL Server TypeThe type of the SQL server
Entry TypeThe type of the SQL connection
Server NameThe name or IP address of the SQL server
DatabaseThe database name used by the MDM server
PortThe port number of the SQL server
User NameThe user name used by the MDM server to connect to the SQL server
PasswordThe password of the connection user

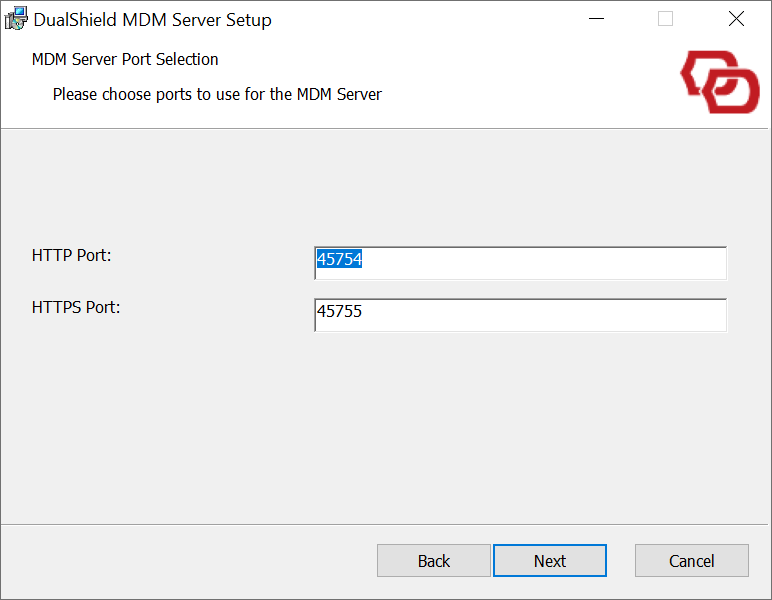

Port Numbers

Ready to Install

Installing

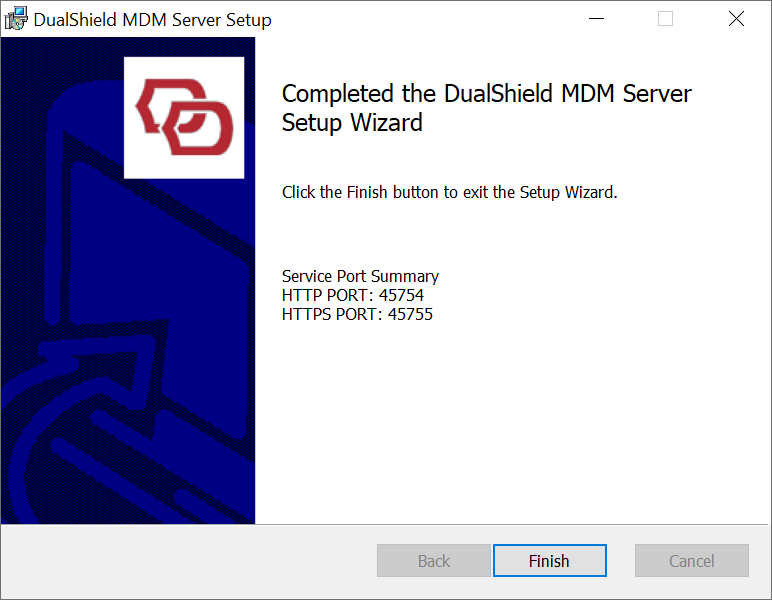

Installation Completed






Connect DualShield MDM Server

We have to establish a mutual connection and mutual trust between A DualShield MDM Server (DMS) and a DualShield Authentication Server (DAS).
