Step 1: Download the following file

Renew DualShield CA Cert v4.zip

Step 2: Extract the zip file and then copy the file 'das-task-import-1.0-standalone.jar' to c:\temp

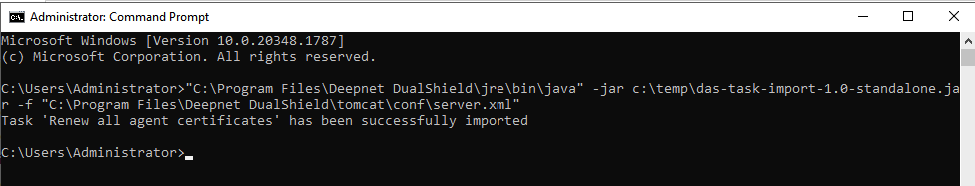

Step 3: Open the elevated Command Prompt and execute the following command

"C:\Program Files\Deepnet DualShield\jre\bin\java" -jar c:\temp\das-task-import-1.0-standalone.jar -f "C:\Program Files\Deepnet DualShield\tomcat\conf\server.xml"

This tool will create a task in DualShield called Renew all agent certificates.

Step 4: Restart the DualShield Server service once, and wait for DualShield to fully start (see How to check if a DualShield server is fully started )

Step 5: Restart the DualShield Server Service again.

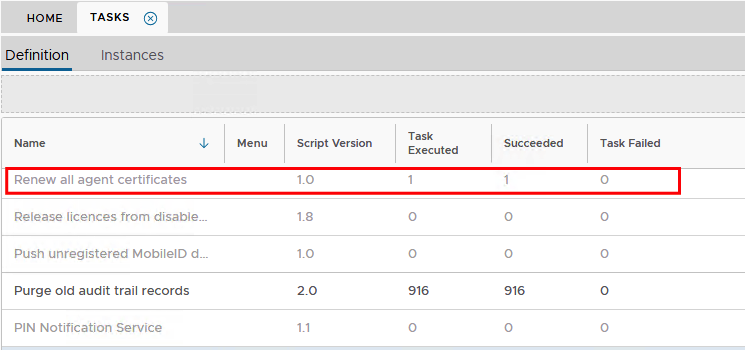

Step 6: After restarted the dualshield service, log back in to the Admin console and go to Administration>Tasks. Check to see if the task has been executed succesfully.

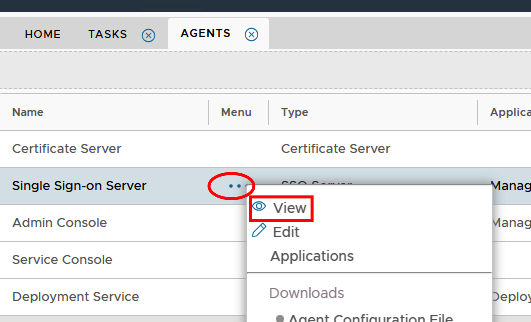

Step 7: Go to Authentication>Agents and view any internal agent, such as Single Sign-On, Admin Console or Service Console

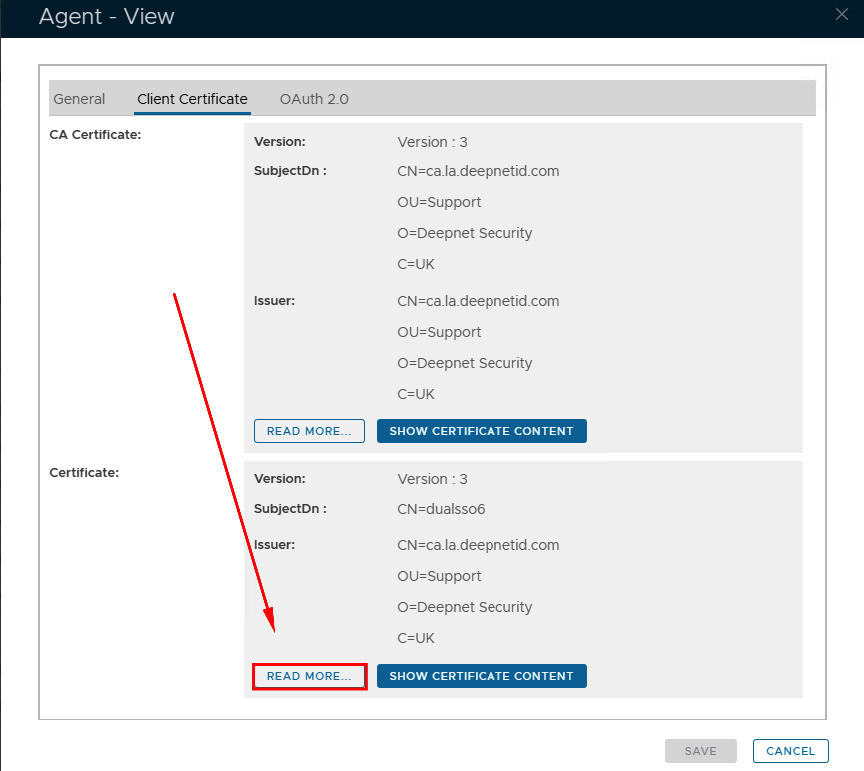

Step 8: Select Client Certificate and then click on Read More at the bottom of the window.

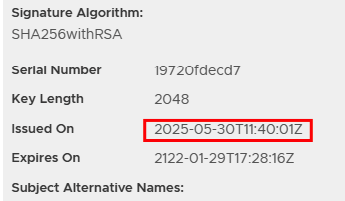

Step 9: Check the date of issue to ensure the certificate has updated succesfully.

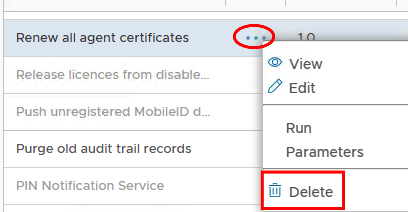

Step 10: Go back to Administration>Tasks and delete the Renew all agent certificate task.

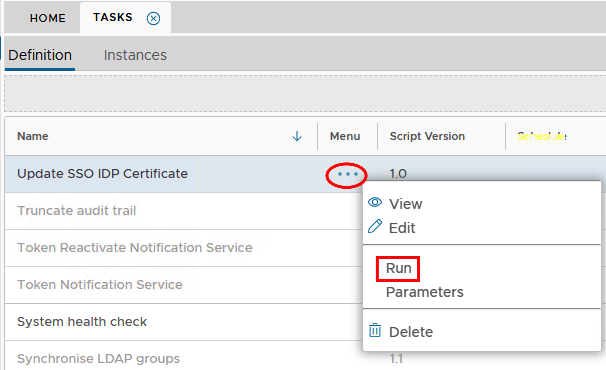

If you do not plan to use the client agent certificate any more (for example, you have enabled OAuth2.0 authentication), you can just run the  Update SSO IDP Certificate task to only update the IDP certificates.
